My studies, development and creations on Robotics, iPhone Apps, Andriod Apps,...etc.
2009年10月29日 星期四
2009年10月22日 星期四
2009年10月20日 星期二
XCode 小秘技(二)

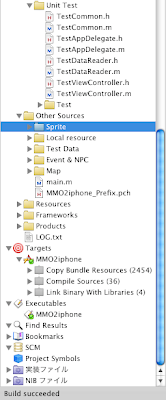

現在由我開發的角色扮演遊戲,已經包含上 2500 張圖片及資料檔案,更需要清清楚楚地分門別類。我嘗試了很多次都無法成功,也找不到類似的功能;最後發現,原來先在 Finder 建立起資料夾,把相應的檔案放進去,並把資料夾拖拉到 XCode 左方檔案清單的 Resources 內;這時會有一個視窗彈出,選擇 Create Folder References for any added folders 即可。而該資料夾的圖示亦會由正常 Group 分類的黃色,變成藍色。這樣編譯出來的 IPA 便會出現該資料夾及檔案。
2009年10月19日 星期一
2009年10月16日 星期五
替 Function 換名

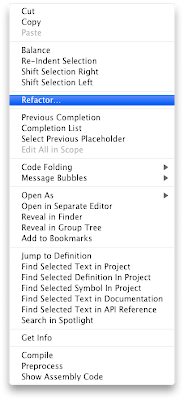

原來在 XCode 下有著一個名為 Refactor 的功能,可以有效地處理以上問題。只要在功能函數上點選滑鼠右鍵,便會彈出如左圖般的選單。點選 Refactor 後輸入新的函數名稱,切記要輸入冒號!按 Preview 後會出現將要修改的地方,同時 Preview 按鈕也會變成 Apply 按鈕。其中 Snapshot 是打勾了,這個是備份功能,方便還原之用;但會把整個 Refactor 進程拖得很慢,我通常都會把它關掉!反正 Refactor 之後的代碼不會立即儲存。最後就是按 Apply 啦!
2009年10月15日 星期四
Shadow warnings!
2009年10月9日 星期五
AppleScripts 處女作

最近工作上的關係,很想在 Leopard 上把大批大批的檔案改名。這個在 Windows 上很簡單的一個指令(ren *.m *.x),卻在 Leopard 上成為難題。雖然我可以用 Windows 來處理這個工作;但在 Leopard 下進行開發,始終想找個解決方法。原來網上也有很多朋友遇到相同的情況!他們多會改用軟件處理(居然連改名都會出一個專用軟件),而我不想下載及安裝,便決定改為使用 AppleScripts 來代替。它是內建在 Leopard 之內,所以不用安裝,而且是免費!我是第一次接觸 AppleScripts。發現它很像英語,單憑指令語句來學習,真是一頭霧水!花了兩個小時,我最後都能編寫出批次修改副檔名的 AppleScripts 了!
------------------------------------------------------------------------------
-- Rename File Extension script
-- Program by Pacess HO
-- 2009-Oct-09 22:30
------------------------------------------------------------------------------
try
-- Set focus to the top folder window
-- And put the path to "sourceFolder"
tell application "Finder" to set the sourceFolder to (folder of the front window) as alias
on error
-- In case no open folder windows, show an error message
display dialog "Please select a folder first and then run script again." with icon caution buttons {"Finish"}
beep 2
return
end try
-- Enter the existing file extension
repeat
display dialog "Enter the extension want to be replaced" default answer "m" buttons {"Cancel", "OK"} default button 2
set the oldExtension to the text returned of the result
if the oldExtension is not "" then exit repeat
end repeat
-- Enter the new file extension
repeat
display dialog "Enter the NEW extension" default answer "x" buttons {"Cancel", "OK"} default button 2
set the newExtension to the text returned of the result
if the newExtension is not "" then exit repeat
end repeat
-- Put files in "sourceFolder" to "fileList"
set the fileList to list folder sourceFolder without invisibles
set sourceFolder to sourceFolder as string
-- Process each file
repeat with i from 1 to number of items in the fileList
set thisFileAndPath to item i of the fileList
set thisFileAndPath to (sourceFolder & thisFileAndPath) as alias
set thisFileInfo to info for thisFileAndPath
-- Remove the path and remain filename with extension
set the thisFileName to the name of thisFileInfo
-- Just process the file which is not a folder or alias
if folder of thisFileInfo is false and alias of thisFileInfo is false then
-- Is it end of old extension?
if the thisFileName ends with the oldExtension then
-- Get the length of old extension
set the nameLength to the number of characters of the oldExtension
-- Remove the old extension
set the newFileName to (characters 1 thru -(the nameLength + 2) of the thisFileName) as string
-- Add the new extension
set the newFileName to the (the newFileName & the "." & the newExtension) as string
-- Rename
tell application "Finder"
try
set the name of thisFileAndPath to the newFileName
end try
end tell
end if
end if
end repeat
beep 2
2009年10月7日 星期三
靈活調動 UITableView 項目的方法
由於 Unit Test 的項目漸漸增加,而某些項目的使用頻率增加了;為了方便起見,我需要能靈活調動項目的次序,以及其相對應的 viewController。
首先在 loadView 內定義好一個 NSArray,內裡包含了項目名稱及其 viewController 的類:
首先在 loadView 內定義好一個 NSArray,內裡包含了項目名稱及其 viewController 的類:
之後在 didSelectRowAtIndexPath 中加入以下指令:
// Prepare menu items
menuList = [[NSArray alloc] initWithObjects:
@"Test 1", [Test01Controller class],
@"Test 2", [Test02Controller class],
@"Test 3", [Test03Controller class],
@"Test 4", [Test04Controller class],
@"Test 5", [Test05Controller class],
@"Test 6", [Test06Controller class],
@"Test 7", [Test07Controller class],
nil];
這樣,日後要更改項目的次序時,只要修改 menuList 中的排位即可;要新增項目時,在 menuList 中加入即可。
//-------------------------------------------------------------------------------
// Respond to user selection
- (void)tableView:(UITableView *)tableView didSelectRowAtIndexPath:(NSIndexPath *)newIndexPath {
UIViewController *viewController;
int itemSelected = [newIndexPath row];
int index = (itemSelected<<1)+1;
Class thisClass = [menuList objectAtIndex:index];
viewController = [[thisClass alloc] init];
[self.navigationController pushViewController:viewController animated:YES];
[viewController release];
}
2009年10月6日 星期二
搜尋應用程式目錄下的檔案
今天我為 Unit Test 的 Java UTF Text 測試進行了更新;把原本放在 UIPickerView 的固定地圖檔名改為即時在應用程式目錄下搜尋出來。
搜尋出來的檔名會包含了檔案類別名稱,在使用到 pathForResource 時便要把它刪除,可使用以下指令:
// Search png file names
NSString *resourcePath = [[NSBundle mainBundle] resourcePath];
mapFileList = [[[[NSFileManager defaultManager] directoryContentsAtPath:resourcePath] pathsMatchingExtensions:[NSArray arrayWithObject:@"png"]] copy];
// Remove file extension .png
NSString *fileName = [pngFileName stringByDeletingPathExtension];
NSString *filePath = [[NSBundle mainBundle] pathForResource:fileName ofType:@"png"];
if (filePath == nil) {return @"Error";}
